Description
Technical Parameters
| XN-VA type air filter is assembled by multiple mini-pleat packs formed into eight(4V) to twelve(6V) pieces of V type pleat. Media is made of activeted carbon granule. XN-VA type Air Filter it can easily remove air contanimation such as fine dust, smoke, vapor, soot, pollen, bacterea and etc. |
Frame is made of ABS, Ease of installation and maintenance. Media: Using carbon particals and ultrafine synthetic fibers composite material, effectively removing harmful substances in the air larger filter area, reliable performance with high adsorption capacity and removal. |
| CAPACITY： |
| 1, Efficiency: 45%, 65%, 85% 2，Standard: EN779 F5, F6, F7 |
| OPERATING CONDITON: |
<td valign="top" style="border-color: rgb(149, 55, 52); >
Temperature: 0~40
Humidity: 70%R/H
Recommended final pressure：450pa
| VARIETIES: |
Different sizes and specification are available. We have 3 type of carbon activate media to meet your needs:
|
| TECHNICAL DATA SHEET: |
| W*H*D | W*H*D(mm) | Area（㎡） | Airflow (CMH) | Initial Pressure(Pa) | Airflow(CMH) | Initial Pressure(Pa) |
| (Inch) | ||||||
| 24*12*12 | 592*287*292 | 4.5 | 1000 | 53 | 1700 | 90 |
24*20*12 | 592*492*292 | 8 | 1660 | 53 | 2800 | 90 |
| 24*24*12 | 592*592*292 | 9.5 | 2000 | 53 | 3400 | 90 |
| MATERIALS SHEET: |
| Frame | ABS, aluminum sheet, galvanized steel sheet |
| Media | Multi-layer super fine carbon activate+Synthetic filter |
| Separator | Hot melt |
| Sealant | Polyurethane |
| Gasket | EVA |

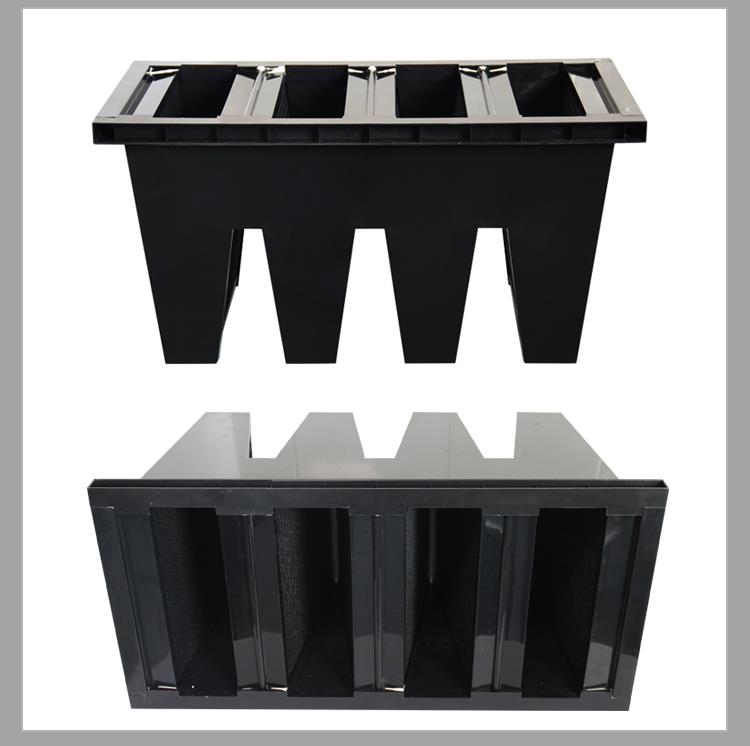

DETAILED IMAGES:
| HEPA filters are extensively used in the final filttration of the civil or industrial cleaning places in the industries such as electronics, semiconductor, precision machinery, hospital and food processing, etc, which require relatively high level of cleanliness. |
