I. Product Introduction

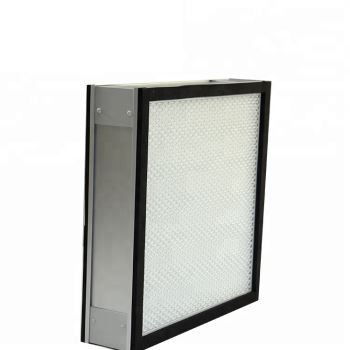

The Large Air Flow Mini Pleat Air Filter is an advanced filtration solution designed for applications requiring high airflow rates with superior filtration efficiency. Utilizing an innovative mini-pleat design, this filter maximizes surface area while minimizing air resistance, making it ideal for demanding HVAC and industrial ventilation systems.
II. Product Advantages
-Enhanced Airflow Performance
-Superior Filtration Efficiency
-Energy Saving Design
-Durable Construction
-Cost-Effective Operation
III. Product Parameters
|
Model |
Outer dimension (mm) |
Rated Air Flow (m³/h) |
Resistance (Pa) |
Efficiency |
|
SAF-WGX-5 |
570*570*69 |
500 |
≤220 |
≥99.99% |
|
SAF-WGX-6 |
610*610*69 |
600 |
||
|
SAF-WGX-10 |
1170*570*69 |
1000 |
||
|
SAF-WGX-12 |
1220*610*69 |
1200 |
||
|
SAF-WGX-14 |
1220*610*80 |
1400 |
||
|
Customized |
IV. Product Applications
-Commercial HVAC Systems
-Industrial Ventilation
-Specialized Environments
-Transportation Facilities
V. FAQ
Q1: How does the mini-pleat design improve performance?
A: The compact pleat pattern increases surface area by up to 40% compared to standard filters, allowing higher airflow with lower resistance while maintaining excellent filtration efficiency.
Q2: What maintenance is required for these filters?
A: Regular visual inspections and pressure drop monitoring are recommended. Replacement is typically needed when pressure drop increases by 100-150% over initial readings or every 6-12 months in standard applications.
Q3: How do I select the right efficiency rating?**
A: Consider your air quality requirements:
- MERV 11-12 for general commercial use
- MERV 13-14 for healthcare and laboratories
- MERV 15 for critical cleanroom applications
