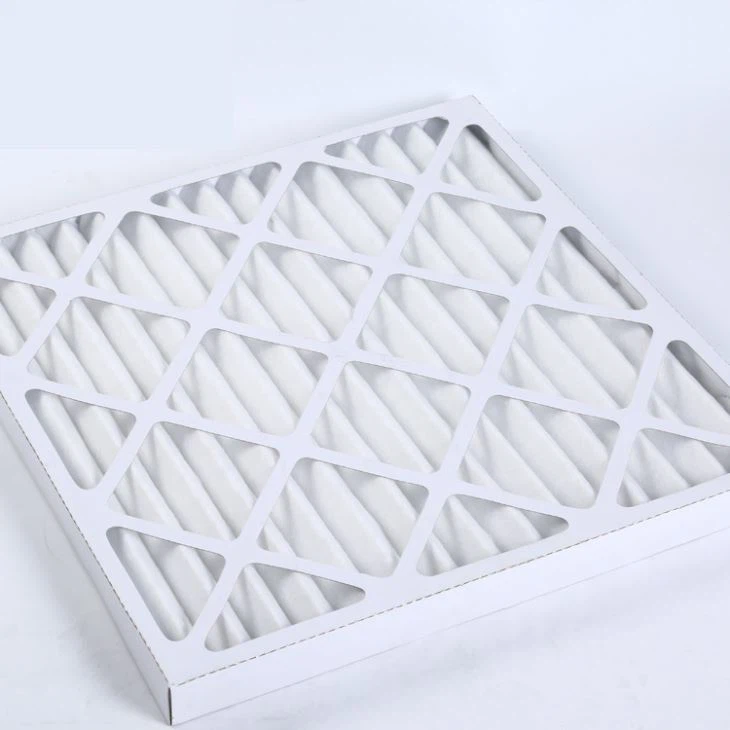

Pleat Paper Panel Filters

Pleat Synthetic Fiber Panel Filters

Application: Filter dust, pre-filter through air filter program Type: synthetic fiber foldaway filter Frame: aluminum, paper or galvanized Media: synthetic fiber Protect mesh: aluminum net or stainless steel net EN779 class:G2, G3,G4,F5 Average arrestance:84%-90%(ASHRAE52.1-1992) EUROVENT4/5 class: EU3,EU4,EU5 DIN53438 Non-flammability Standard: F1 Final resistance: (suggested) 200Pa-250Pa Max. air flow: 125% of the rated air flow Temp. resistance: 100℃ Humidity:100%

Send Inquiry

Description

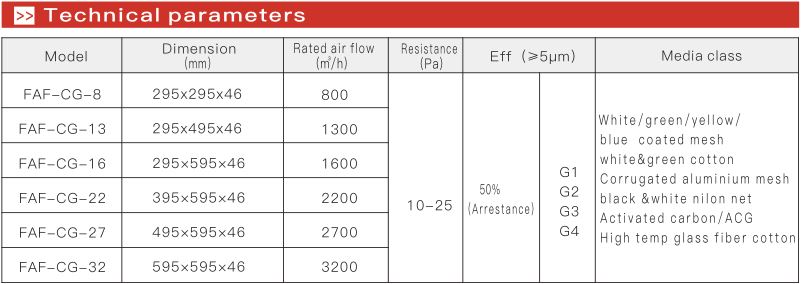

Technical Parameters

The panel filter is well suited to be as the pre-filter for the air-take- in sytstem and exhaust system of the air handling units or general ventilations system or the factories for purification.

ADVANTAGE

Pleated paper panel filter in pleating, Z line;

Stong structure with low pressure;

Easy for installation and disposal;

Temperature resistance up to 80;

Moistrue-resistant up to 100%;

Produced to customer's specification.

FRAME WORK

Polyester/cotton blend with expanded metal grid, and the flame is waterproof cardboard;

MEDIA MATERIALS:

White/green/yellow/

blue coated mesh
