I. Product Introduction

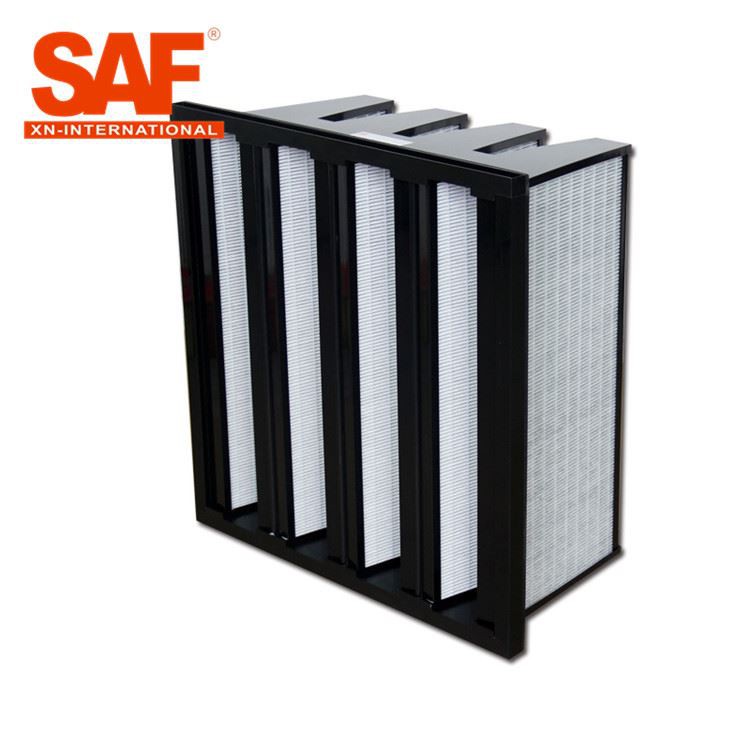

The Compact Filter Medium Air Filter is a high-performance, space-efficient air filtration solution designed for HVAC systems, cleanrooms, and industrial air handling units
Each compact filter medium air filter is individually tested via PSL particle, Using MPPS (DOP Test) laser particle counting device to measure overall efficiency of the filter.
Standards Compliance: EN 779, ISO 16890, ASHRAE 52.2
II. Product Features
| Category | Specifications |
|---|---|
| High Filtration Efficiency | - MERV 11-13 (≥90% capture of 1-3µm particles) - EN ePM1 60-70% (for fine particulate matter) |
| Optimized Airflow Resistance | - Initial pressure drop: ≤50 Pa - Final pressure drop: ≤250 Pa (recommended replacement point) |
| Compact & Lightweight | - 50% thinner than standard filters (25-50mm depth) - Aluminum/plastic frame options for rigidity |
| Durable & Moisture-Resistant | - Hydrophobic media prevents mold/bacterial growth - Fire-retardant (UL 900 Class 1 / EN 60335 compliant) |
| Long Service Life | - Dust-holding capacity: 300-500 g/m² (depends on application) |
III. Parameters
| Model | Outside dimensions (mm) |
Rated air flow (m³/h) | Initial resistance (Pa) |
Efficiency |
| SAF-XHX-05 | 287*287*292*2V | 500 | ≤220±20% | G3-H10 |
| SAF-XHX-08 | 287*490*292*3V | 800 | ||
| SAF-XHX-10 | 287*592*292*4V | 1000 | ||
| SAF-XHX-12 | 490*490*292*3V | 1200 | ||
| SAF-XHX-16 | 490*592*292*4V | 1600 | ||
| SAF-XHX-20 | 592*592*292*4V | 2000 |
IV. Product Applications
HVAC Systems – Commercial buildings, hospitals, data centers
Cleanrooms – Pharmaceutical, electronics manufacturing (ISO Class 8-9)
Industrial Processes – Paint booths, welding fume extraction
Automotive – Cabin air filters, paint spray booths
Residential Air Purifiers – High-efficiency particulate filtration
Applied to large air flow ventilation system, filtration system of pharmaceutical, food, hospitals, clean room etc. It can be used as terminal-filtration of medium and high efficiency filtration system or pre-filtration of super-efficient filtration system.
V. FAQ
Q1:How often should the filter be replaced?
A:Depends on air quality; typically 6-12 months (monitor pressure drop ≥2x initial value).
Q2:Can it be washed/reused?
A:No, this is a disposable filter-washing degrades efficiency.
Q3:Does it capture viruses?
A:It captures large droplets (≥1µm) but is not a HEPA filter. For viruses, pair with UV sterilization.
