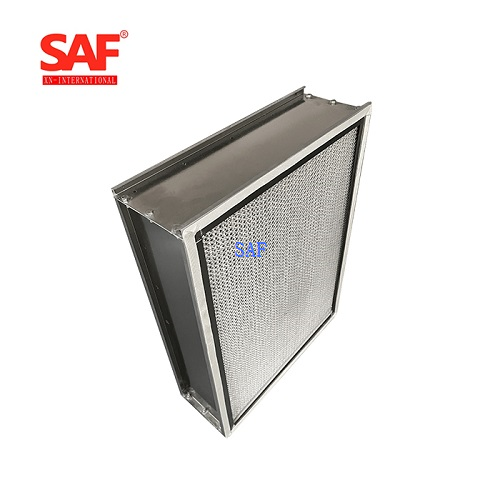

24x24x5 Inch High Temp h14 Air Hepa Filter Purifier For Medical / Electronic
A high-temp H14 HEPA filter is a type of filter that is designed to remove 99.995% of particles from the air that pass through it. It is designed to operate at high temperatures, typically up to 250°C.
Material and Performance
|
Frame Material |
Stainless steel |
|
Filter medium |
Glass fiber paper,pp fiber |
|
Partition |
Aluminun foil(PTP) |
|
Sealant |
High temperature resistant sealant from import |
|
Max. temperature |
350°C |
Advantages :
1. High efficiency
2. Stainless steel frame
3. Aluminum foil for separator
4. Max. temperature : 350 centigrade
Applications :
High-temp H14 HEPA filters are used in applications where air filtration is required at high temperatures, such as in industrial ovens, kilns, and furnaces. They are also used in cleanrooms, where the air must be free of contaminants.
Specification and Technical parameters
|
Model |
Nominal Size W*H*D (inch) |
Actual Size W*H*D(mm) |
Rated Airflow (m³/h) |
Initial Resistance (pa) |
Efficiency (Colorimetric Method) /Class |
|
|
SAF-H |
19*19*8-2/3 |
484x484*220 |
1000 |
≤220 |
≥99.99% |
|
|
SAF-H1 |
24*24*5-7/8 |
610x610x150 |
1000 |
|||
|
SAF-H2 |
36*24*5-7/8 |
915x610x150 |
1500 |
|||
|
SAF-H3 |
24*24*11-3/5 |
610x610x290 |
1900 |
|||
FAQ
Q: What is the difference between a regular HEPA filter and a high-temp H14 HEPA filter?
A: Regular HEPA filters are designed to operate at lower temperatures and are made with materials that cannot withstand high temperatures. High-temp H14 HEPA filters are designed to operate at higher temperatures and are made with materials that can withstand those temperatures.
Q: How often do high-temp H14 HEPA filters need to be replaced?
A: The lifespan of a high-temp H14 HEPA filter depends on several factors, including the quality of the filter, the operating conditions, and the level of contamination in the air being filtered. In general, they should be replaced every 6 to 12 months, or as recommended by the manufacturer.
Q: Can high-temp H14 HEPA filters be cleaned and reused?
A: Some high-temp H14 HEPA filters can be cleaned and reused, but this depends on the specific filter and the manufacturer's recommendations. In general, it is more common to replace the filter rather than attempting to clean it.
