I. Introduction

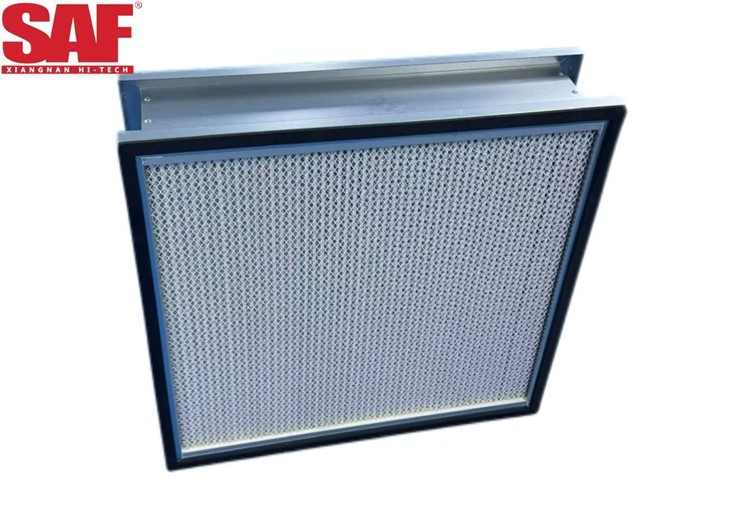

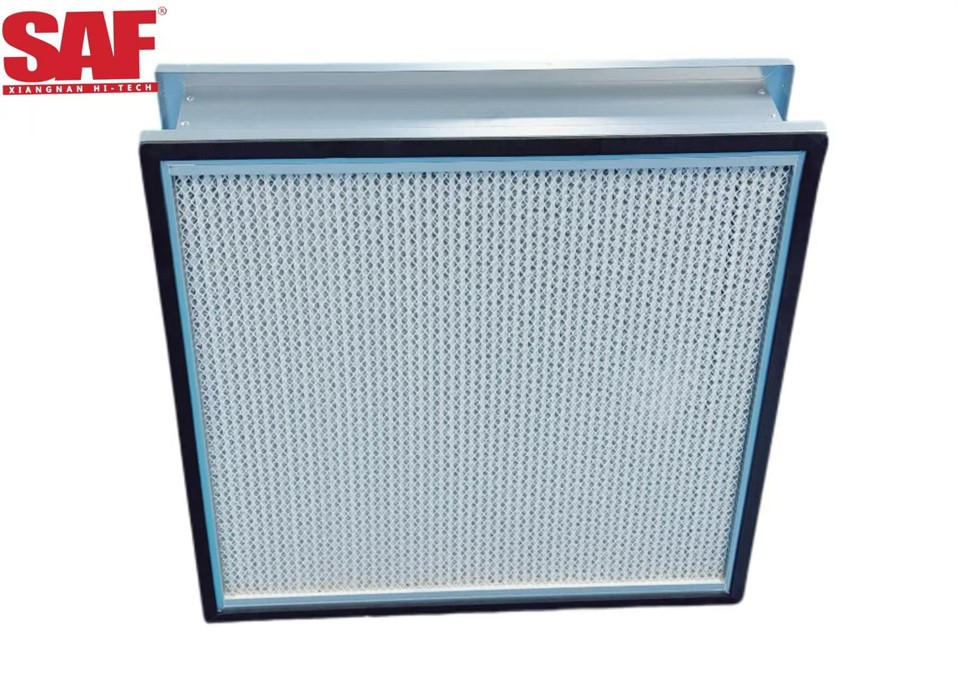

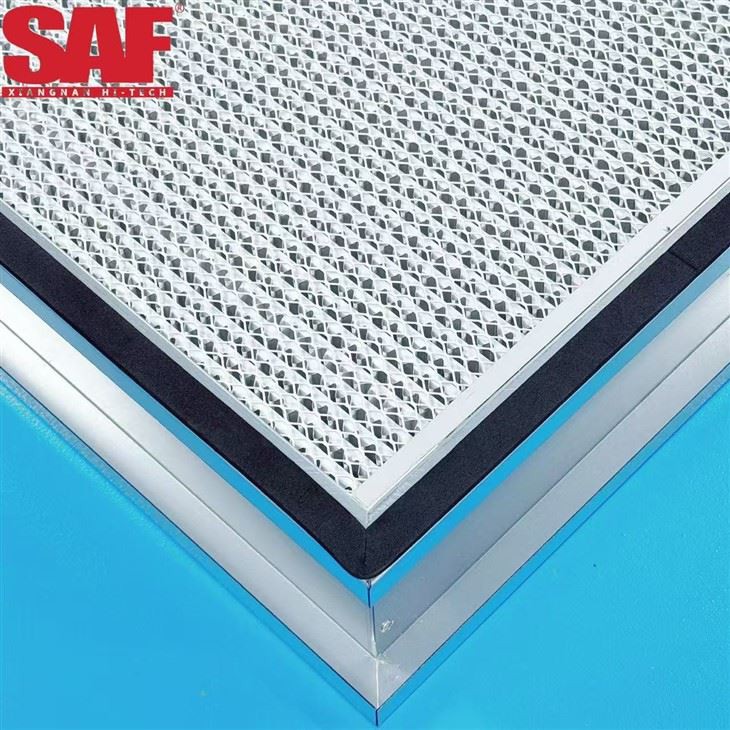

Double Flange Design provides a secure and airtight seal, ensuring no bypass of unfiltered air.Galvanized Steel Frame offers durability, corrosion resistance, and structural stability.Aluminum Separator enhances filter strength and maximizes surface area for improved filtration efficiency.High-Efficiency Media captures 99.97% of particles as small as 0.3 microns (HEPA) or 99.999% of particles as small as 0.12 microns (ULPA).
II.Structures of Double Flange High-Efficiency Filters
|
Filter Efficiency |
99.97% efficiency at 0.3 microns,99.999% efficiency at 0.12 microns |
|
Frame Material |
Stainless steel, aluminum, galvanized |
|
Filter Dimensions |
24x24x12 inches, 24x24x6 inches, etc |
|
Pressure Drop |
0.5 to 1.5 inches of water gauge |
|
Temperature |
Operating Temperature: Up to 70°C (158°F) |
|
Humidity Tolerance |
Up to 80% RH |
II.Parameters of Double Flange High-Efficiency Filters
| Model | Nominal Size (mm) | Rated Airflow (m³/h) | Initial Resistance (pa) | Efficiency |
| SAF-DF01 | 305×305×150 | 250 | ≤220±10％ |
H13(99.97％)@0.3μm H14(99.995％)@0.3μm |
| SAF-DF02 | 457×457×150 | 600 | ||
| SAF-DF03 | 610×610×150 | 1000 | ||
| SAF-DF04 | 915×610×150 | 1500 | ||
| SAF-DF05 | 1220×610×150 | 2000 |
III.FAQ
Q1. Can you accept sample orders?
We can.
Q2. What is your packaging?
Can be packaged according to customers actual requirements if you need.
Q: What is Foreign Trade-Express?
The stock out of the warehouse is 2-5 days, 100 standard products, about 10-15 days.
