I. Product Introduction

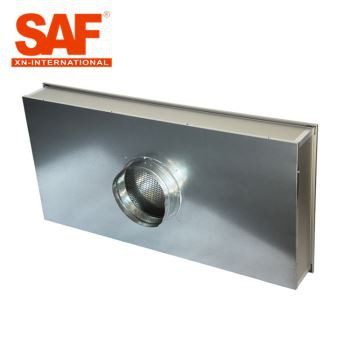

The Disposable Terminal HEPA Air Filter is a high-efficiency particulate air filter designed for critical environments requiring clean air, such as hospitals, laboratories, pharmaceutical facilities, and electronics manufacturing. Installed at the terminal end of HVAC systems or cleanroom ceilings, it ensures 99.97% filtration efficiency for particles ≥0.3µm, including dust, bacteria, viruses, and other airborne contaminants.
Disposable Terminal HEPA Air Filter include:
304 stainless air supply outlet and HEPA Filter
Air Supply Outlet Frame: 304 stainless
HEPA Filter: Aluminum alloy
Size: It can be customized
Filter Material: Fiberglass
Efficiency: H13
Transport Package: Carton box
Origin: Shenzhen, China
HS CODE: 8421399090
II. Product Features
True HEPA Efficiency – Meets EN1822 / IEST-RP-CC001.6 standards, capturing 99.97% of 0.3µm particles.
Disposable Design – Eliminates cleaning risks, ensuring consistent performance.
Low Airflow Resistance – Optimized pleat design for minimal pressure drop.
Sealed Construction – Polyurethane or aluminum gaskets prevent bypass leakage.
Fire-Resistant Media– UL 900 Class 1 or Class 2 certified (optional).
Lightweight & Compact – Easy to handle and install in tight spaces.
Multi-Layer Protection – Combines HEPA media with pre-filter support for extended lifespan.
III. Product Parameters
| Parameter | Specification |
|---|---|
| Filtration Standard | HEPA (H13-H14) |
| Efficiency | 99.97% @ 0.3µm (H13) 99.995% @ 0.3µm (H14) |
| Frame Material | Aluminum Galvanized Steel Plastic |
| Seal Type | PU Gasket Silicone Non-shedding Adhesive |
| Max Operating Temp. | 70°C (158°F) |
| Pressure Drop | ≤220 Pa (Initial, @ rated airflow) |
| Standard Sizes | 610×610×69mm 305×305×69mm (Custom sizes available) |
| Airflow Capacity | 300-1,000 m³/h (varies by size) |
| Fire Rating | UL 900 Class 1 (Optional Class 2) |
| Weight | 2-10 kg (depending on size) |
IV. Product Applications
Healthcare– Operating rooms, isolation wards, sterile pharmacies.
Pharmaceuticals – Cleanrooms, vaccine production, filling lines.
Electronics – Semiconductor manufacturing, microelectronics assembly.
Food & Beverage – Aseptic packaging, sterile processing.
Biotech & Labs – BSL-3/4 labs, animal research facilities.
Aerospace– Cleanrooms for satellite & precision component assembly.
V. FAQ
Q1: How often should a disposable HEPA filter be replaced?**
- Typically every 1–3 years, depending on air quality and usage. Monitor pressure drop; replace if it exceeds 2x initial value.
Q2: Can it capture viruses and bacteria?
- Yes, HEPA filters trap **≥0.3µm particles, including most bacteria (0.5–5µm) and virus-laden droplets.
Q3: What's the difference between H13 and H14?
- H13: 99.97% @ 0.3µm (EN1822)
- H14: 99.995% @ 0.3µm (for ultra-critical applications)
