I. Product Introduction

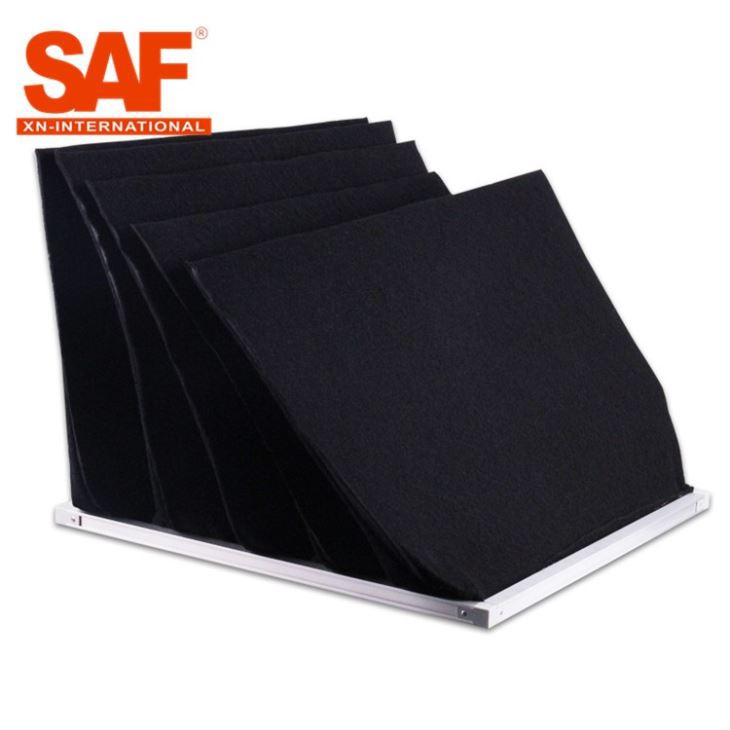

Carbon Activated Bag Filters combine mechanical filtration with chemical adsorption for advanced air purification. These systems feature activated carbon-impregnated filter bags that capture particulate matter while adsorbing gases, odors, and VOCs in a single filtration stage.
II. Product Advantages
1.Activated carbon synthetic fiber filter material is used.
2.Strong sucking ability, effectively remove odor and other chemical pollutants in the air.
3.Large filtration area, Good ventilation.
III. Product Parameters
| Parameter | Specification | Technical Details |
|---|---|---|
| Brand | SAF | Shenzhen Air Filtration Co., Ltd. |
| Frame Material | Aluminum Alloy | Anodized surface, corrosion-resistant |
| Filter Medium | Activated Carbon Synthetic Fiber | 500-600g/m² carbon loading |
| Dimensions (L×W×H) | 592×592×550mm (6-Pocket Design) | ±2mm tolerance |
| Airflow Capacity | 3400 m³/h | @ 150Pa initial resistance |
| Efficiency | Particulate: MERV 13 VOC: 85% @ 500ppm |
Tested per ISO 16890 & ASTM D3806 |
| Temperature Range | -20°C to 80°C | Continuous operation |
| Carbon Type | Coconut Shell-Based | Iodine Value: ≥1000mg/g |
| Connection | Flanged (Standard) | Optional clamp-on available |
| HS Code | 8421399090 | Non-electric air filters classification |
| Origin | Shenzhen, China | CE/ISO 9001 certified manufacturing |
IV. Product Applications
Industrial Processes:
- Chemical manufacturing fume control
- Pharmaceutical API production
- Food processing odor management
Commercial Systems:
- Paint booth exhaust treatment
- Wastewater treatment plant emissions
- Printing press VOC abatement
Specialty Uses:
- Laboratory exhaust systems
- Semiconductor cleanrooms
- Emergency spill response
V. FAQ
Q1: How often should carbon bags be replaced?
A: Typical replacement intervals:
- Moderate use: 6-9 months
- Heavy VOC loads: 3-6 months
(Monitor via pressure drop + odor breakthrough)
Q2: Can bags be reactivated?
A: Limited thermal reactivation possible for coconut carbon (3-5 cycles), but recommend replacement for consistent performance.
Q3: What's the difference between standard and impregnated carbon?
A:- Standard:** Best for general VOCs
- Potassium Iodide Impregnated:Targets H₂S and mercaptans
- Phosphoric Acid Impregnated: For ammonia removal
