Havc Carbon Filter for Air Conditioner

HAVC Carbon Filter For Air Conditioner 1.product introduction The activated carbon PRE filter is made of activated carbon felt as the filter material, wedge shaped folding model to increase the filter area, metal mesh clamping or built-in metal dragon skeleton support, with metal outer frame to...

InquiryChat Now

  • Product Details

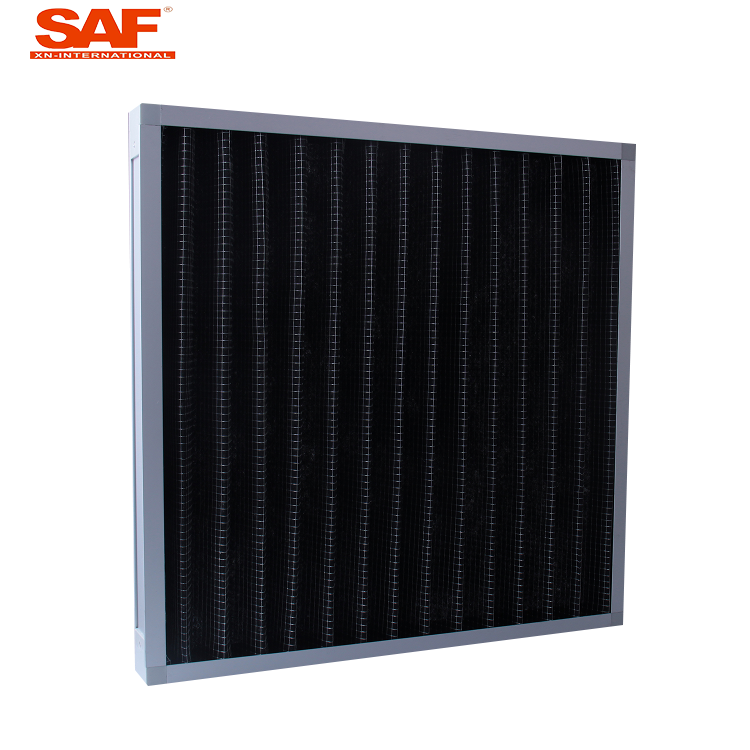

HAVC Carbon Filter For Air Conditioner

1.product introduction



The activated carbon PRE filter is made of activated carbon felt as the filter material, wedge shaped folding model to increase the filter area, metal mesh clamping or built-in metal dragon skeleton support, with metal outer frame to make

2.standard specification

Model No.

Outsize L*W*H (mm)

Rated air flow (m³/h)

Initial resistance (pa)

Efficiency (%)

Filter media

C-G3/G4

12"*12"*1³/4"
     295*295*46

800

40

80%-90%

Activated carbon filter cotton

OR

Activated carbon particles

20"*12"*1³/4"
     495*295*46

1300

20"*20"*1³/4"
     495*495*46

2200

20"*20"*1³/4"
     495*495*46

1600



24"*20"*1"
       595*495*46

2700



24"*24"*1"
       595*595*46

3200

special size can be according to customer special requirement

3.features and applications

Features :
 ●the pleated  activated carbon filter is mainly  to deal with the odor and air pollution, and also provides the best solution for air filtration in the air conditioning ventilation area
 ●The filter area of the folded filter is five times that of the normal plane strainer
 ●It contains 100 % surface adsorption capacity, and the filter material has great adsorption capacity, which can effectively remove a lot of odor and harmful gas in the air
 ●low resistance, long life, easy to rinse, easy to replace, economical and durable

Application:
 Generally used for primary filtration of air conditioning system.
 Air conditioned ventilation room handles smell, can clean indoor air effectively.
 Industrial waste gas pollution treatment


4.product details

 Medium Material: Activated carbon filter cotton / Activated carbon particles
 Porosity: 5 Micron
 Model Number: G3/G4
 Dimension(L*W*H): Standard Size
 Weight: 1-10kg
 Certification: ISO9001:2008
 Warranty: Non -quality Problems
 Usage: Filter Air
 Business Type: Manufacturer
 Frame: Aluminum Frame
 Application: Air Conditioner

5.Packaging details:plastic bag inside,carton box outside,wooden case reinforced.

6.Delivery time : 10-15 working days

7.Payment terms :western union,T/T


8.Authorized certification
